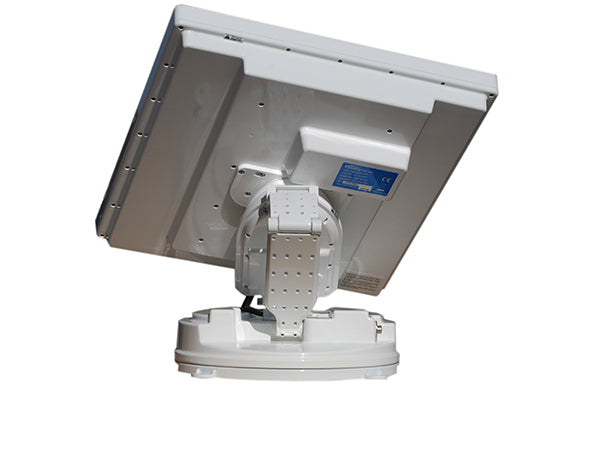

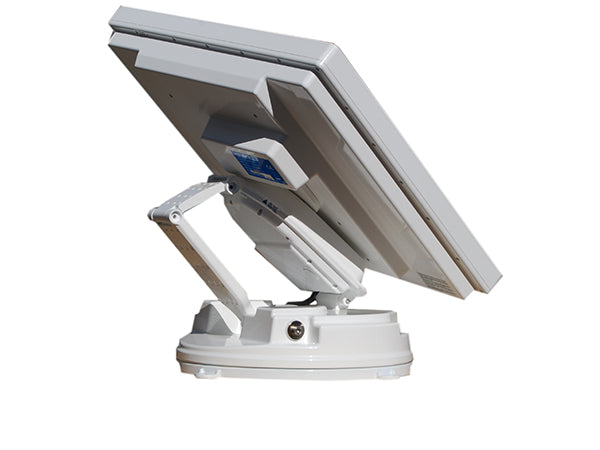

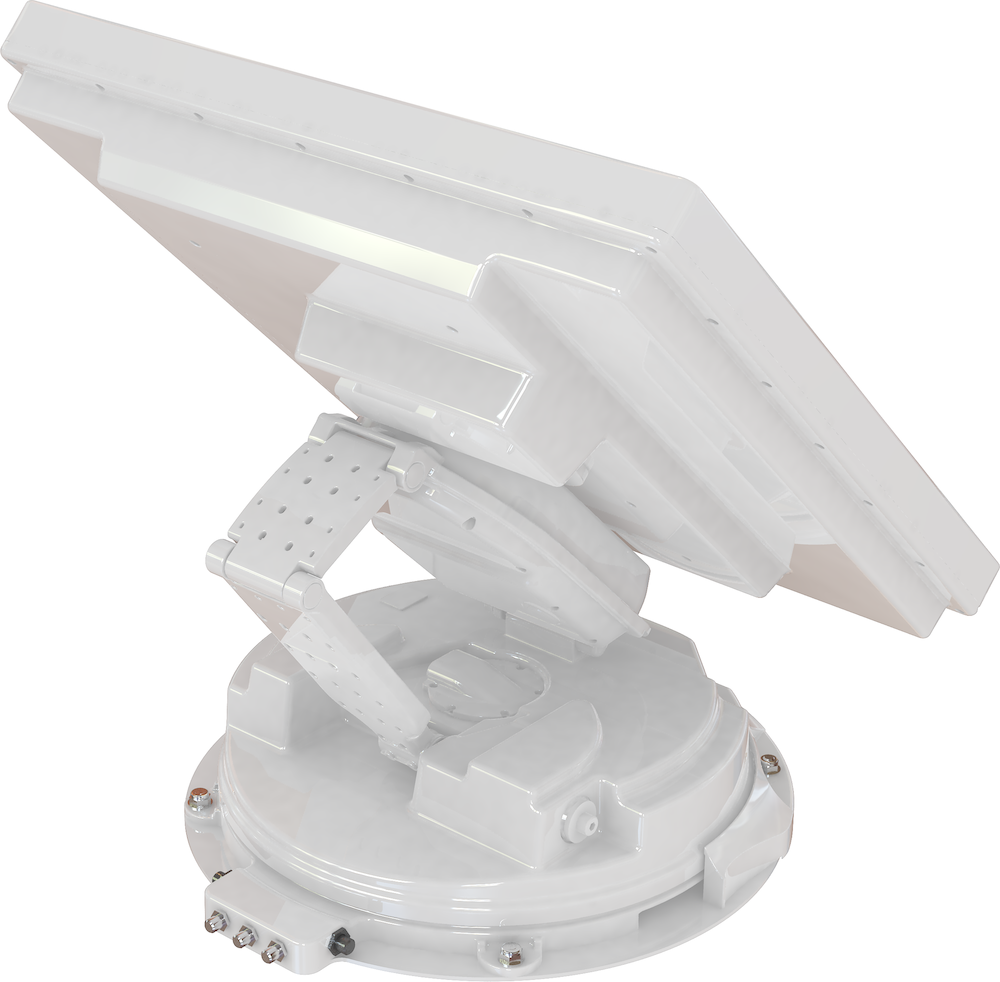

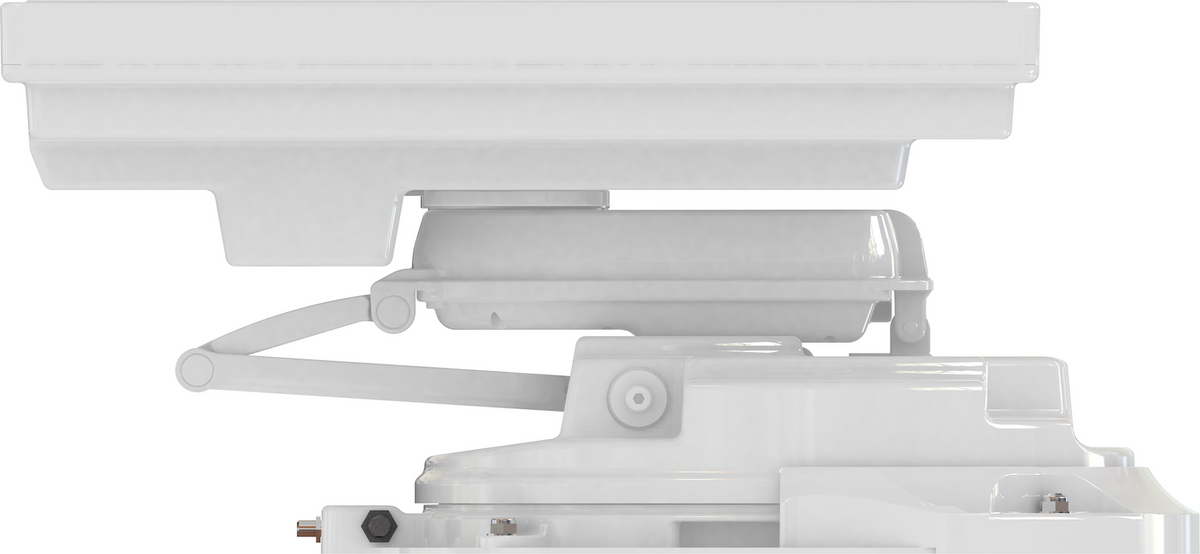

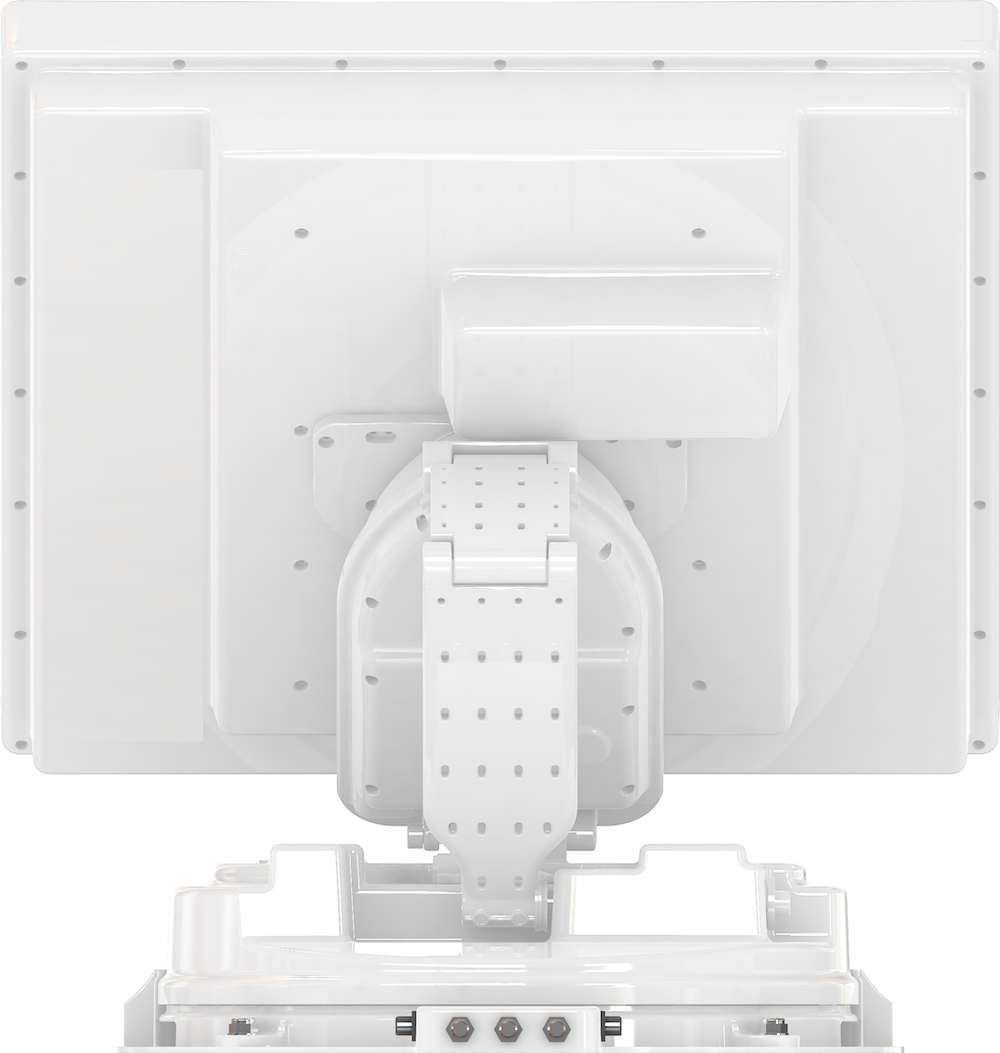

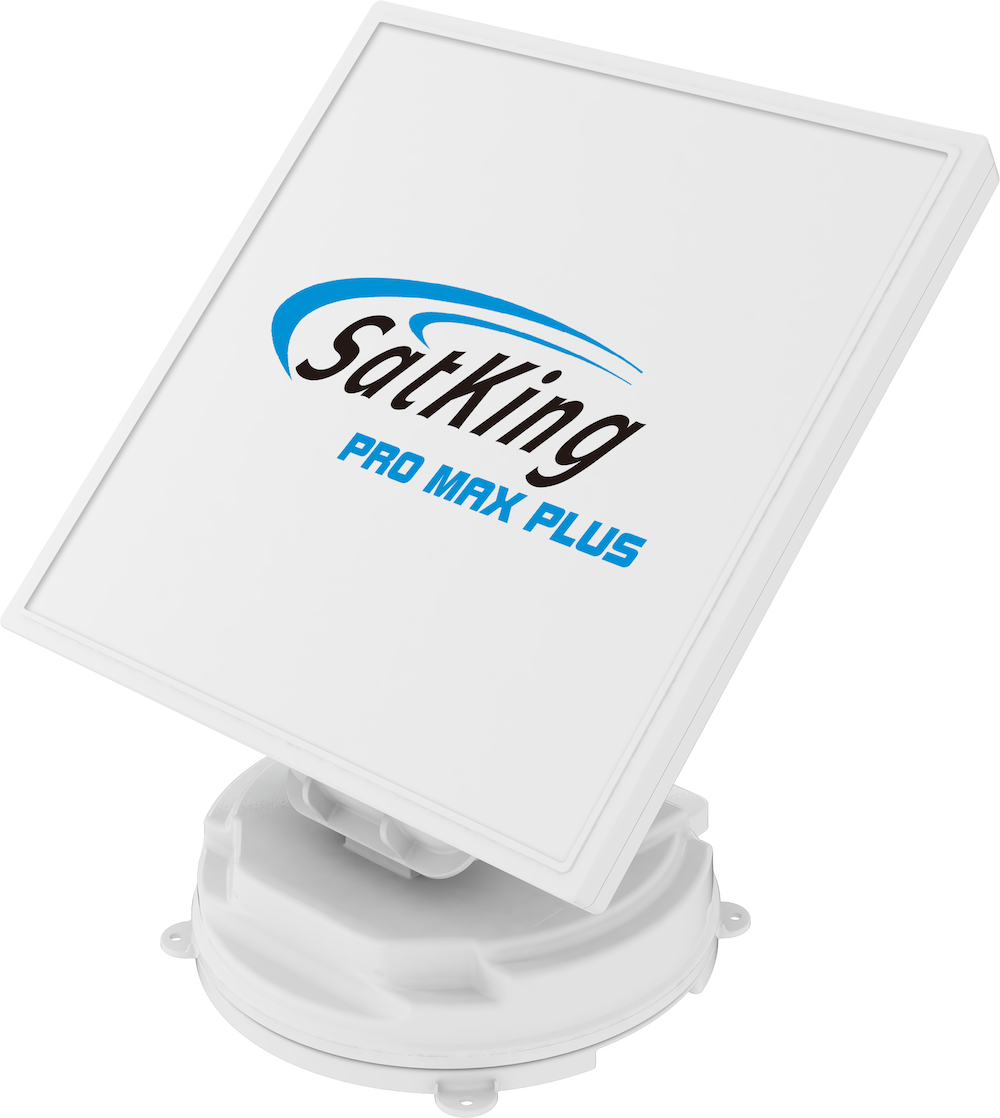

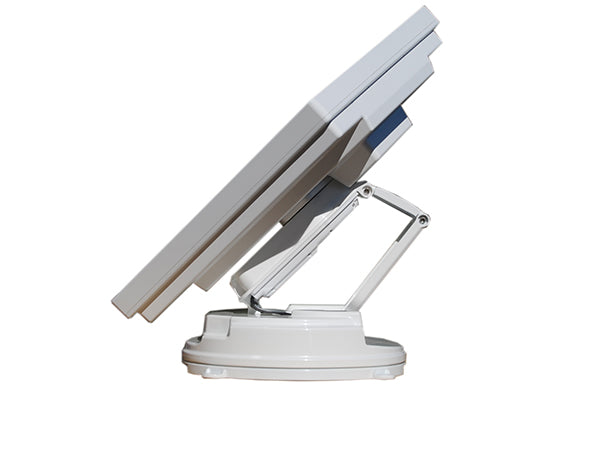

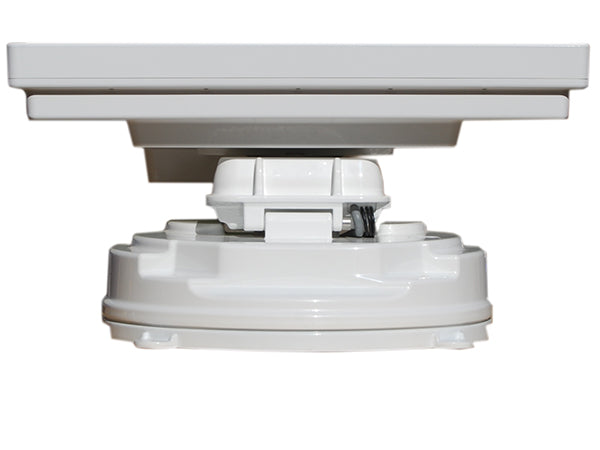

SatKing Pro Max Fully Automatic Motorised Satellite TV System

$3,995.00

Premium Automatic Satellite TV System

Upgrade your caravan with the SatKing Pro Max, the ultimate solution for Foxtel and VAST satellite TV. Featuring a dual LNB output, it is fully compatible with twin-tuner receivers like Foxtel IQ and MyStar.

Key Features:

  • Advanced Flat-Panel Tech: Offers higher signal gain than traditional dishes with a smaller footprint on your roof.
  • Full 3-Axis Movement: The antenna automatically adjusts its "skew" (LNB angle), ensuring perfect reception from Melbourne to Perth without you ever climbing onto the roof.
  • Australia-Wide Coverage: Recently upgraded to provide signal across the entire continent (excluding the tip of Cape York).
  • Rugged Longevity: Precision-made in Korea with high-quality metal gears and a 3-year Australian warranty.
  • DIY or Pro Install: Includes detailed instructions for self-installation or can be fitted by your local dealer.

Technical Specifications:

Physical Specifications

  • Dimensions: 520 x 600 x 274 mm
  • Controller Dimensions: 175x175x43 mm
  • Weight: 18.5kg
  • Mounting Plate Dimensions: 430mm Front to Back, 410mm Left to Right
  • Operating temperature range: -30°C to 60°C

LNB

  • Polarization: Horizontal/vertical
  • LNB L.O: 10700
  • LNB output: Dual Output
  • LNB input frequency: 11.75 - 12.75 GHz
  • LNB output frequency: 950 - 2150 MHz

Antenna Adjustment Range

  • Elevation: 5° - 90°
  • Azimuth: 390°
  • Skew: -60° ~+60°

Satellite Searching Time

  • Elevation: 5° - 90°
  • Azimuth: 390°
  • Skew: -60° ~+60°

Satellite Searching Time

  • Searching time: 80 Seconds (Average)
  • Last position search time: 20 Seconds (Average)

Power

  • Input Voltage: DC 12 or 24V auto selection
  • Voltage Range: 10.5v – 30.0v
  • Consumption: 40 Watts in search mode and 4 Watts in Standby Mode

Packages:

  • 1 x Flat antenna
  • 1 x Vehicle roof mounting kit

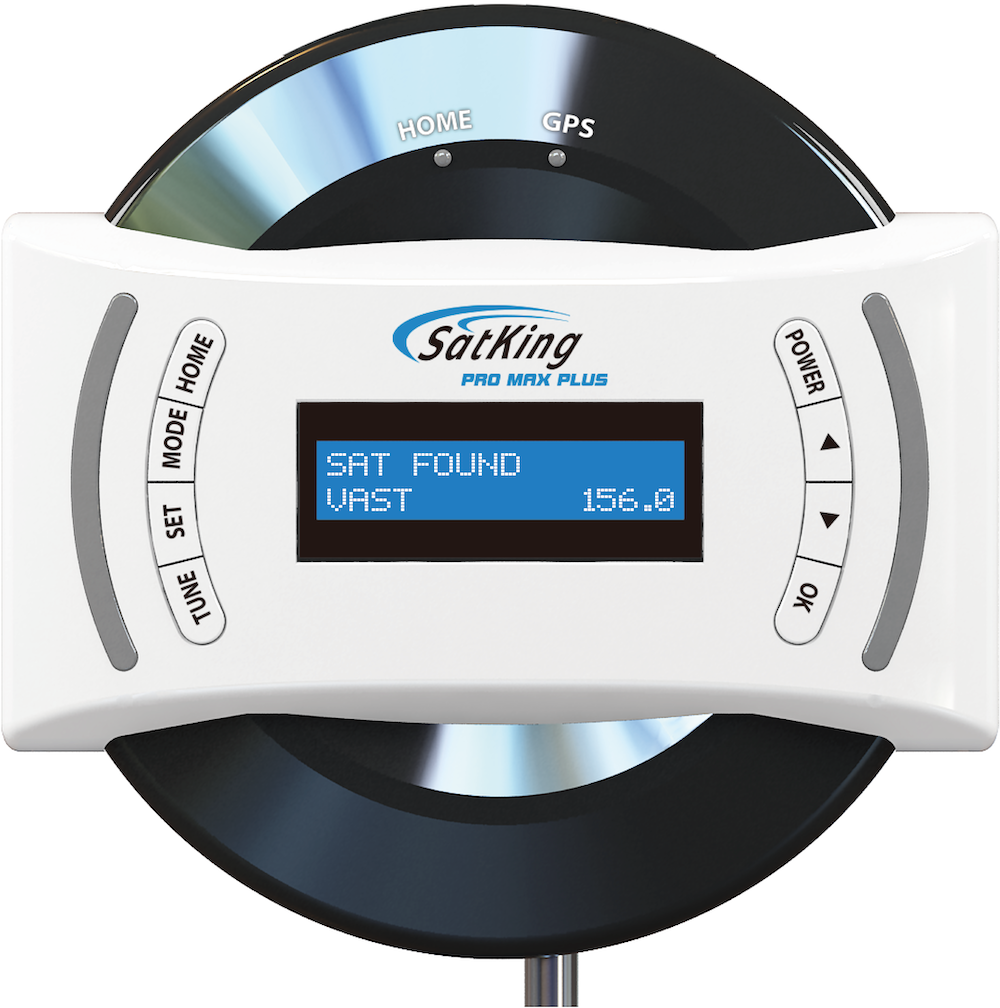

  • 1 x Controller (Remote for Inside the Van)
  • 1 x DC Power cable
  • 2 x LNB cables (Coaxial Cables)
  • 1 x Waterproof Cable Gland
  • 1 x Spanner
  • 1 x Instruction booklet
  • 1 x Colour gift box
